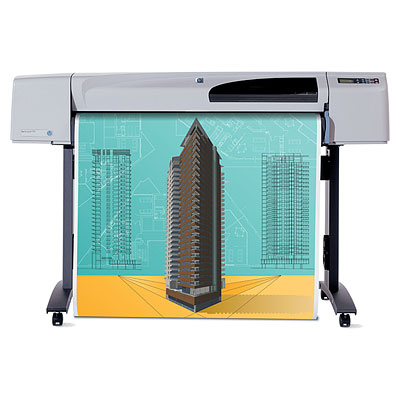

Máy in HP Designjet 500 (42-inch) Printer (C7770B) giá rẻ

Technical Specifications

Connectivity

Optional connectivity

HP Jetdirect 620n (EIO) Internal Print Server, HP-GL/2 accessory card

Medihandling

Custom medisizes

Any custom size, bigger than 210 x 210 mm and smaller than 1067 x 15240 mm

Roll maximum output

45.7 m

Sheet feed maximum output

1897 mm

Mediwidth maximum

1067 mm

Finished output handling

Single sheet feed, roll feed, automatic cutter

Meditypes supported

Bright white inkjet paper (bond), natural tracing paper, clear film, matte film, coated paper, heavyweight coated paper, high-gloss photo paper, semi-gloss photo paper, paper-based semi-gloss, studio canvas, banners with Tyvek, colorfast adhesive vinyl

Paper handling

Single sheet feed, roll feed, automatic cutter, medibin, printer stand

Medisizes supported

ISO A0 (for 42" model), ISO A1, ISO A2, ISO A3, ISO A4

Recommended mediweight

Up to 195 g/m²

Power

Power consumption

150 watts maximum

Power requirements

100 to 240 AC (+/- 10%) auto-ranging, 50/60 Hz, 3 amps maximum

Printing

Colour(s) of print cartridges

4 (Black, Cyan, Magenta, Yellow)

Number of print cartridges

4 (1 each black, cyan, magenta, yellow)

Compatible ink types

Black: HP pigment ink; cyan, magenta, yellow: HP dye-based ink

Optional printer languages

HP-GL/2, HP RTL

Standard printer languages

Adobe® PostScript® 3™ (using supplied EFI Designer Edition XL software RIP), HP-PCL3-GUI

Maximum print length

15.2 m

Line accuracy

± 0.2%

Guaranteed minimum line width

0.0423 mm

Print quality black (best)

Up to 1200 x 600 dpi

Print quality colour (best)

Up to 1200 x 600 dpi

Print technology resolution

HP Colour Layering Technology

Print speed (colour, Designjet, economic quality)

7.9 m²/hr

Print speed (colour, Designjet, photo quality)

2 m²/hr

Print speed (colour, Designjet, productivity quality)

3.3 m²/hr

Colour printing technology

HP Color Layering Technology

Print technology

HP Thermal Inkjet

Print time color image ISO N5 (best, D glossy paper)

Up to 16 min/page

Print time color image ISO N5 (draft, D coated paper)

Up to 3.5 min/page

Print time color image ISO N5 (normal, D coated paper)

Up to 7 min/page

Print time color image ISO N5 (normal, D glossy paper)

Up to 9.5 min/page

Margins, leading/trailing edges

17 mm (default)

Lateral margins

5 mm (default)

Network types

Fast Ethernet/802.3, RJ-45 (10/100Base-TX), Ethernet/802.3, RJ-45 (10Base-T), BNC (10Base2), LocalTalk System 7, Token Ring/802.5, DB9

Software

Software included

Microsoft® Windows® 7 ready. For more information go to http://www.hp.com/go/windows7, Windows® 2000, XP Home, XP Professional, Server 2003, AutoCAD 2000-2004, AutoCAD Release 13, 14; raster driver for Mac OS X v 10.2.3 and higher

Compatible operating systems

Microsoft® Windows® 2000; Windows XP Home; Windows XP Professional; Mac OS X v 10.2.3 or higher

Printer drivers included

Microsoft® Windows® 2000 and XP; drivers for Macintosh (OS X, OS 10.2, 10.3)

Storage

Hard disk capacity

None

System

Minimum system requirements

For use with HP drivers only: Microsoft® Windows® 2000, 32 MB RAM, 500 MB free on hard disk, Power Macintosh 8.5, 8.6, 9.0 For use with EFI Designer Edition XL RIP: 800 MHz Pentium® III PC, 256 MB RAM, 10 GB free hard drive, CD-ROM or DVD-ROM, 1 free USB port for copy protection VGA compatible graphic card

Minimum system requirements for Macintosh

For use with EFI Designer Edition XL RIP on Mac OS X 10.2.1 and higher: Power Mac G3, G4 or G5, iMac, eMac, PowerBook G3 or G4 or iBook, 256 MB RAM, 1 GB free hard drive, CD-ROM or DVD-ROM, 1 free USB port for copy protection

Recommended system requirements

Microsoft® Windows® 2000, 2003 Server: Pentium® II, 733 MHz, 256 MB RAM, 2 GB available hard disk space; Microsoft® Windows® XP: Pentium® IV, 1 GHz, 256 MB RAM, 2 GB available hard disk space

Environmental information

Operating temperature range	15 to 35° C
Acoustic pressure emissions	52 dB(A)
Acoustic power emissions	65 dB(A)
Recommended humidity operating range	15 to 80% RH

Compliance information

Electromagnetic compatibility	Compliant with the requirements for Class B ITE products (Class A when connected to LAN cables): EU EMC Directive, USA FCC rules, CanadDOC, AustraliACA, New Zealand MoC, ChinCCIB, Class A for KoreMIC, Taiwan BSMI
ENERGY STAR® qualified	Yes
Safety	Compliant with the requirements for ITE products: EU Low Voltage Directive, USA and CanadCSACertified for US & Canada, Mexico NOM-1-NYCE, ArgentinIRAM, ChinCCIB & CCEE, Singapore PSB, RussiGOST, Poland PCBC.

Physical information

Product weight	45 kg
Product dimensions (W x D x H)	1690 x 674 x 1100 mm
